GridDB | GridDB: Open Source Time Series Database for IoT

Go Faster.
Grow Bigger.

Designed from the ground up to handle

Millions of Writes Per Second

Petabytes of Time Series Data

Millions of Reads per second

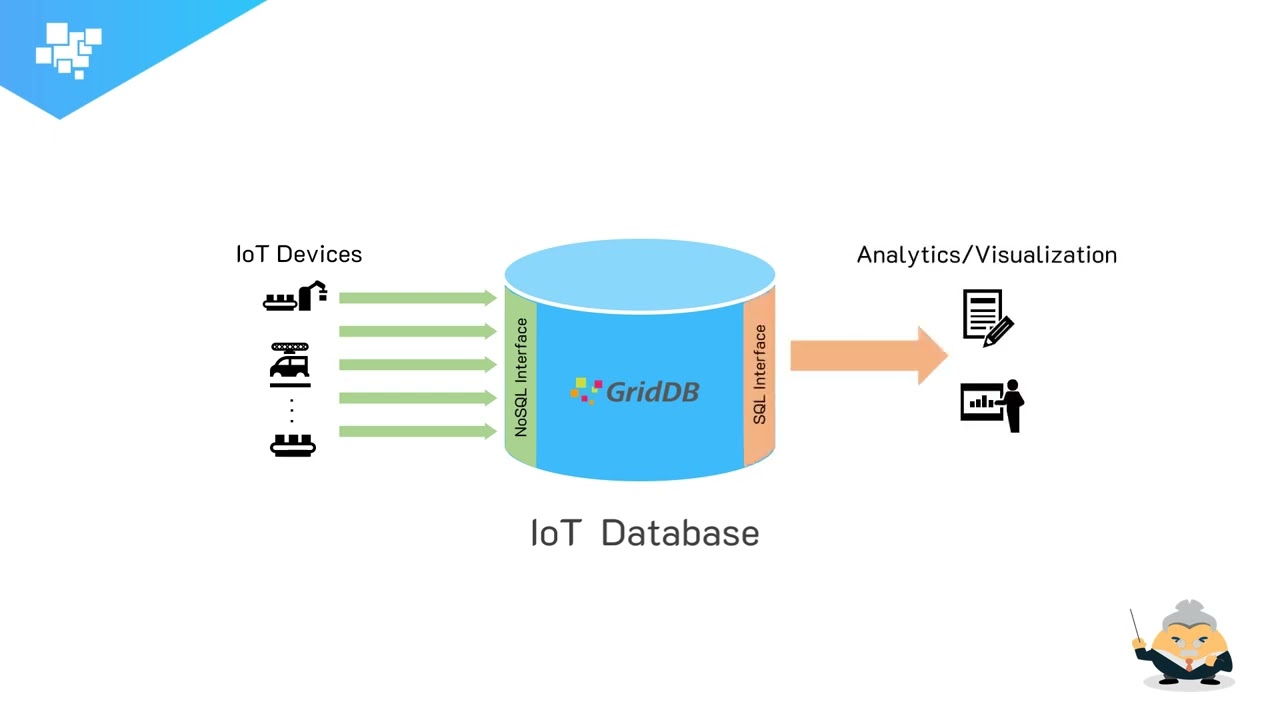

IoT and Big Data Analysis

When to use GridDB?

RDBMS can be used as the core for IoT and Big Data Systems, but often a hybrid approach with specialized databases like GridDB offers better performance, scalability, and efficiency.

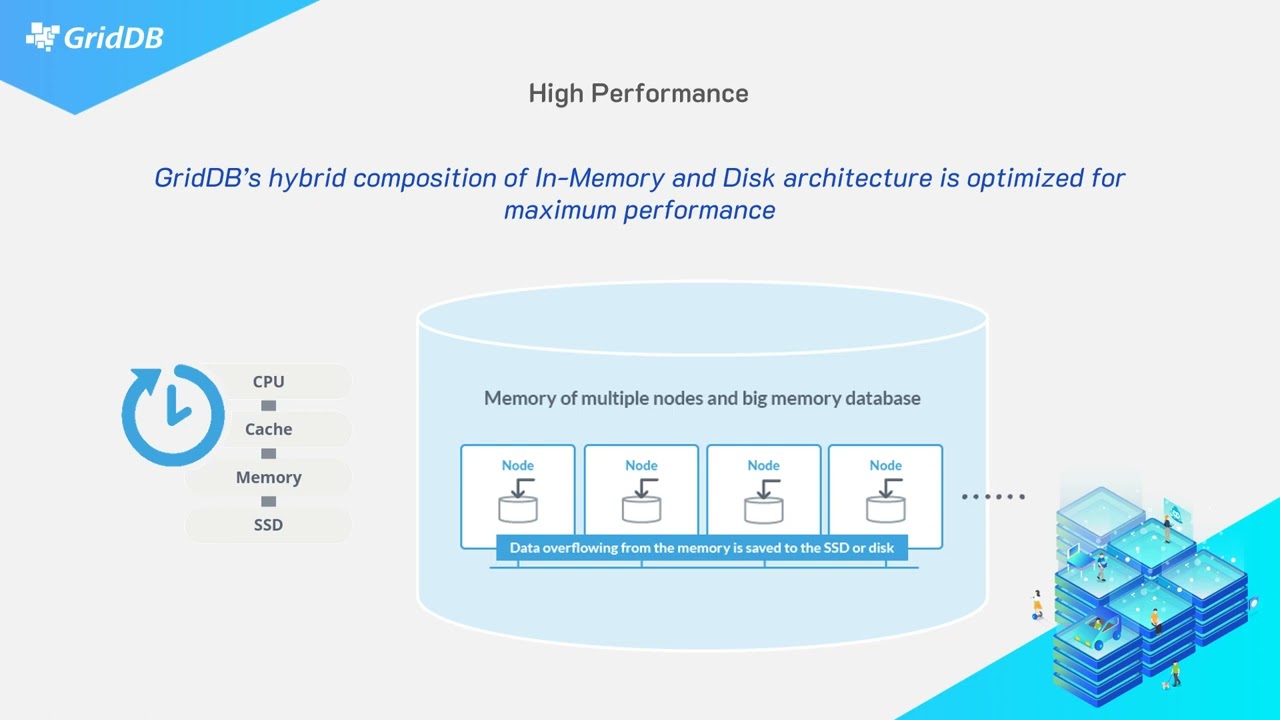

High Performance

GridDB’s hybrid composition of In-Memory and Disk architecture is designed for maximum performance. I/O is a common bottleneck in any DBMS that can cause the CPU to be under-utilized. GridDB overcomes this bottleneck with the ‘Memory first, Storage second’ structure where the ‘primary’ data that is frequently accessed resides in memory and the rest is passed on to disks (SSD and HDD).

Read the Whitepaper

GridDB Performance vs MariaDB
13x Faster Ingest

32,000 OPS

GridDB

MariaDB

2,000 OPS

High Scalability

Various architectural innovations, such as in-memory orientation with "memory as the main unit and disk as the secondary unit" and event-driven design with minimal overhead, have been incorporated to achieve processing capabilities that can handle petabyte-scale applications.

Read the Whitepaper

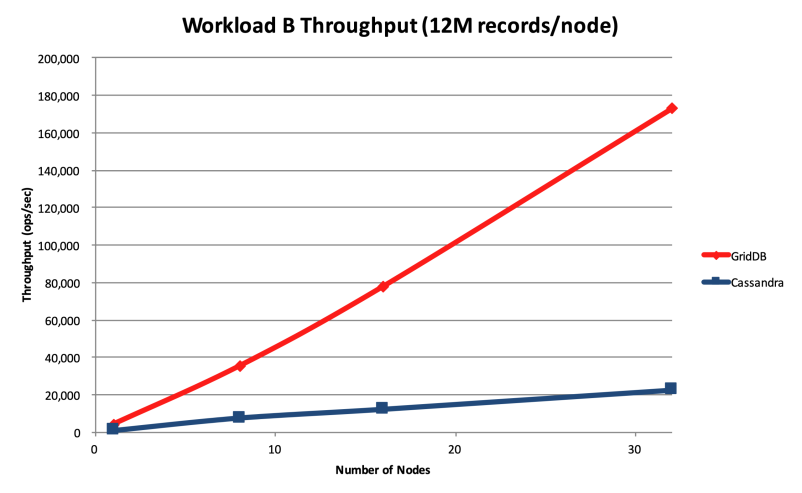

GridDB Performance vs Cassandra

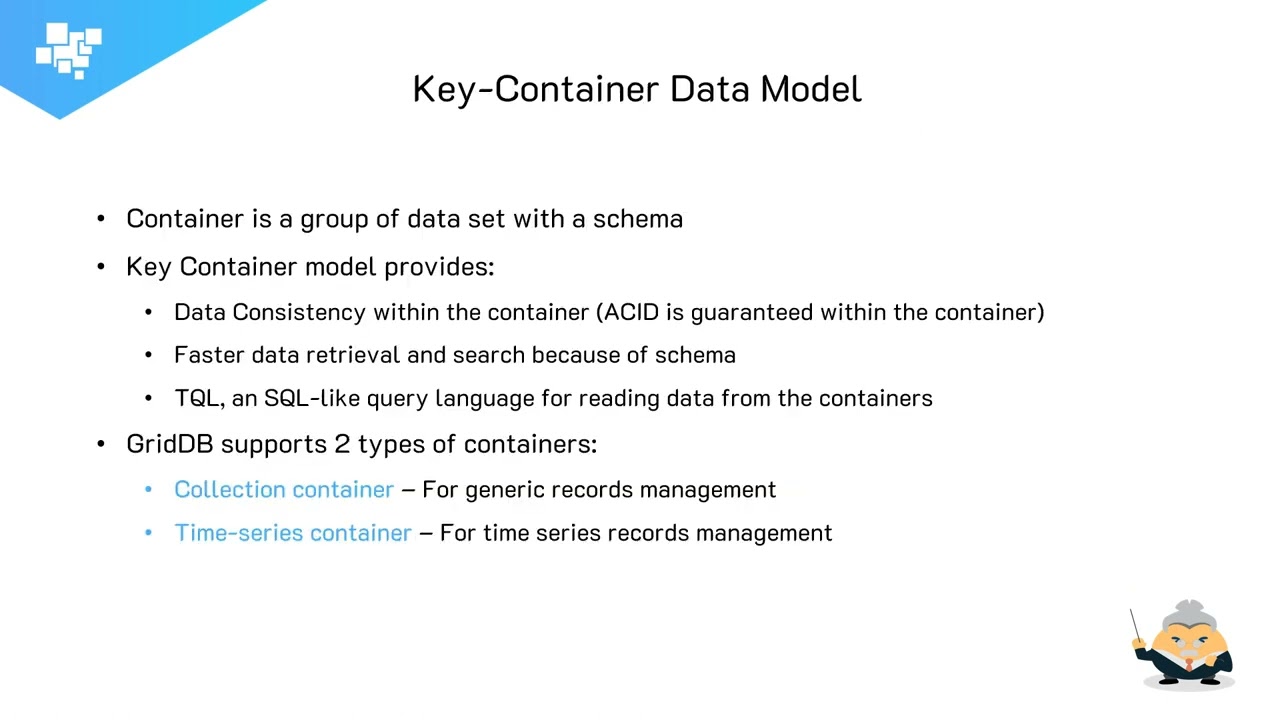

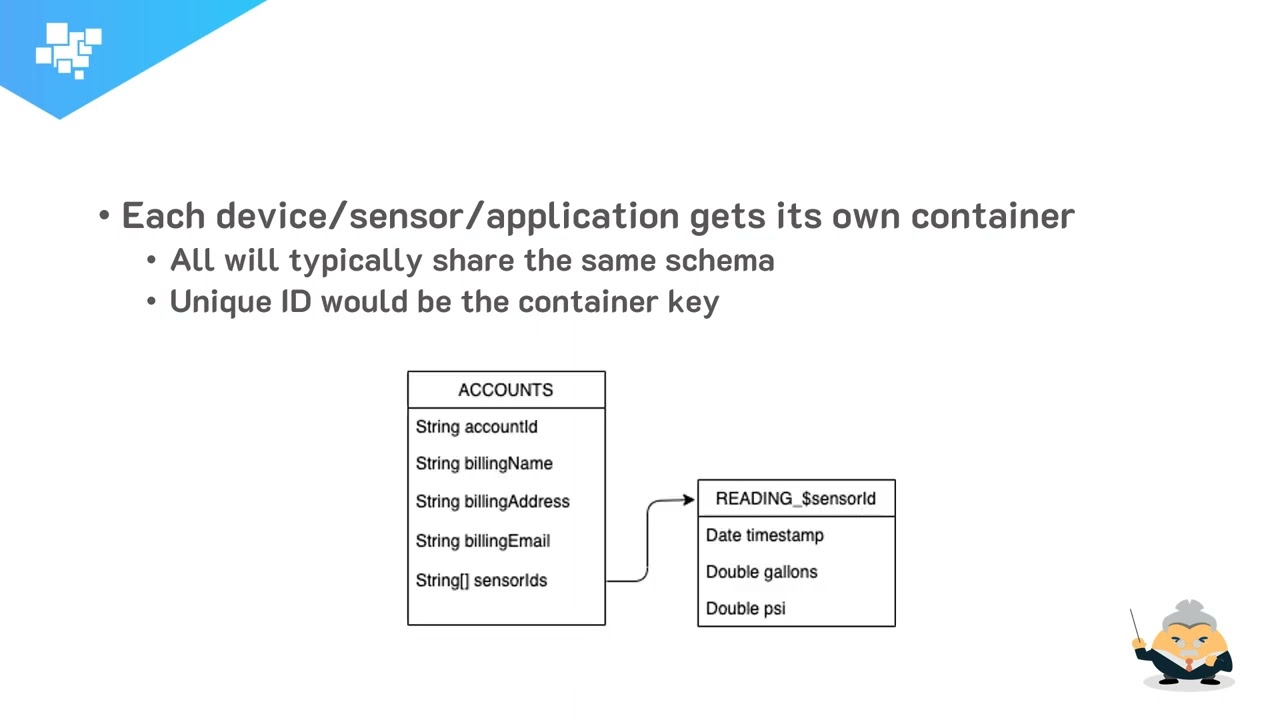

Optimized for IoT and Time Series Data

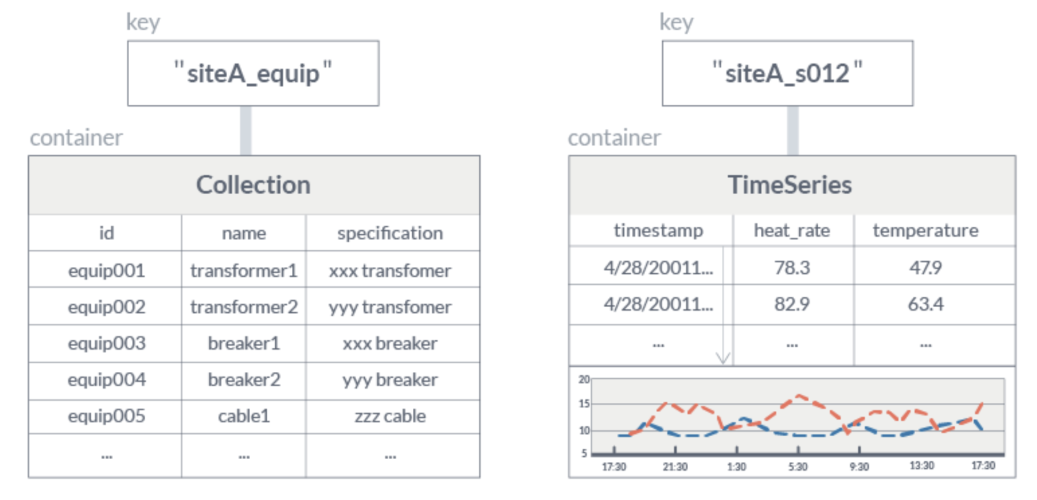

GridDB’s Key Container data model and Time Series functions are built for IoT. The Key Container data model of GridDB extends the typical NoSQL Key-Value store. The Key Container model represents data in the form of collections that are referenced by keys. The key and container are rough equivalents of the table name and table data in Relational Databases (RDB). Data modeling in GridDB is easier than with other NoSQL databases as we can define the schema and design the data similar to that of an RDB.

Read the Whitepaper

GridDB Performance vs Cassandra

What's New

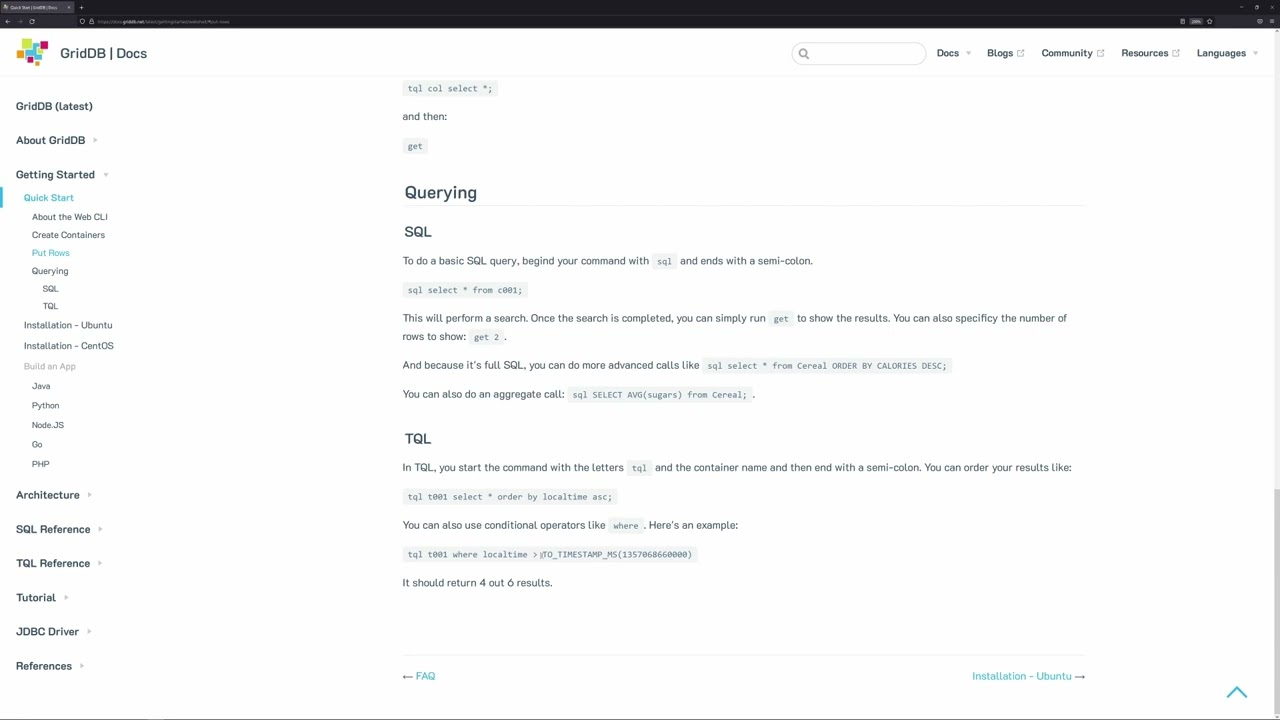

Installation instructions and Web CLI

Optimized for Developers

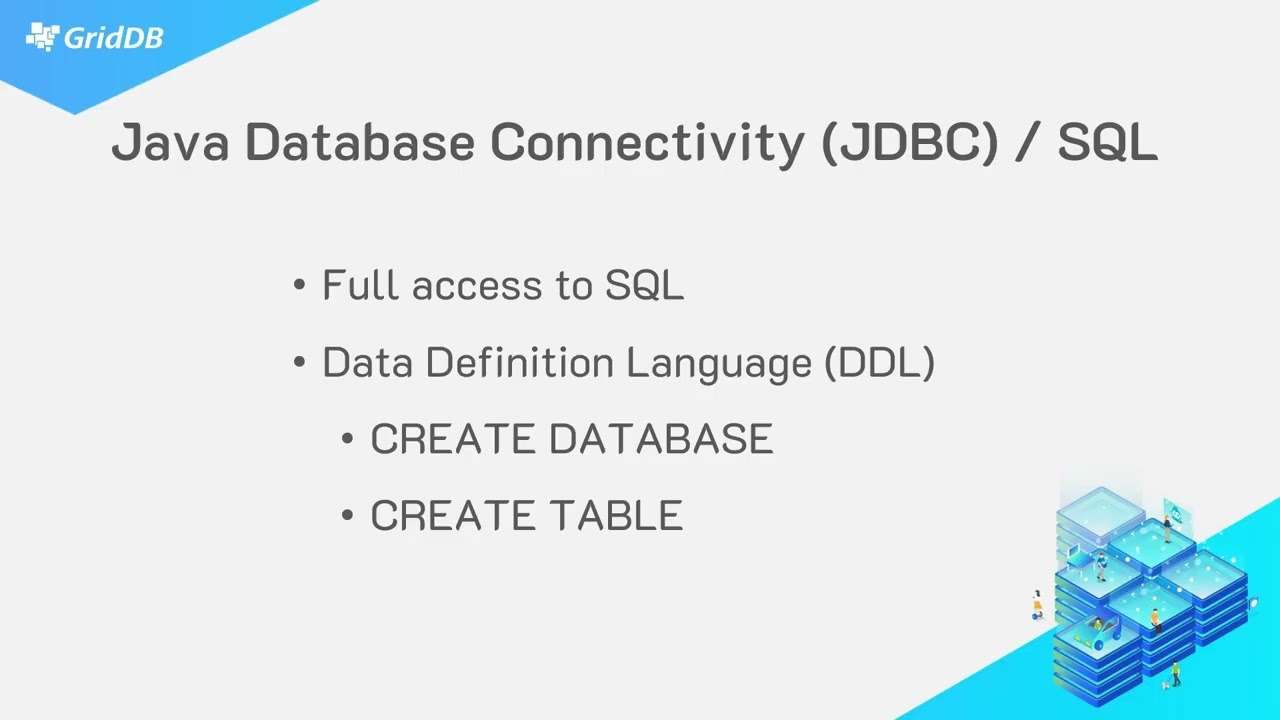

Hybrid NoSQL Interface for Data Ingestion and SQL for Query


					// for more information, please visit the docs
// https://docs.griddb.net/gettingstarted/java.html

import java.util.Properties;
import com.toshiba.mwcloud.gs.*;

Properties props = new Properties();
props.setProperty("notificationMember", "127.0.0.1:10001");
props.setProperty("clusterName", "myCluster");
props.setProperty("user", "admin");
props.setProperty("password", "admin");
GridStore store = GridStoreFactory.getInstance().getGridStore(props);


					static class Point {
	@RowKey Date timestamp;
	boolean active;
	double voltage;
}
TimeSeries<Point> ts = store.putTimeSeries("point01", Point.class);
Point point = new Point();
point.active = false;
point.voltage = 100;

// Store the time-series element (GridStore sets its timestamp)
ts.append(point);


					Date now = TimestampUtils.current();
Date before = TimestampUtils.add(now, -6, TimeUnit.HOUR);
}
RowSet<Point> rs = ts.query(before, now).fetch();
while (rs.hasNext()) {
	point = rs.next();

	System.out.println(
	"Time=" + TimestampUtils.format(point.timestamp) +
	" Active=" + point.active +
	" Voltage=" + point.voltage);
}


					// for more information, please visit the docs
// https://docs.griddb.net/jdbcdriver/

import java.util.Properties;
import java.sql.Connection;
import java.sql.DriverManager;

String notificationMember = "127.0.0.1:20001";
String clusterName = "myCluster";
String databaseName = "public";
String username = "admin";
String password = "admin";
String encodeClusterName = URLEncoder.encode(clusterName, "UTF-8");
String encodeDatabaseName = URLEncoder.encode(databaseName, "UTF-8");
String jdbcUrl = "jdbc:gs://" + notificationMember + "/";

jdbcUrl = jdbcUrl + encodeClusterName + "/" + encodeDatabaseName;

Properties prop = new Properties();
prop.setProperty("user", username);
prop.setProperty("password", password);

Connection con = DriverManager.getConnection(jdbcUrl, prop);


					String str = "CREATE TABLE device";
str = str+"(ts TIMESTAMP PRIMARY KEY, co DOUBLE,";
str = str+"humidity DOUBLE,light BOOL,lpg DOUBLE,motion BOOL,smoke DOUBLE,temp DOUBLE)";
str = str+" USING TIMESERIES WITH (expiration_type='PARTITION',";
str = str+" expiration_time=90,expiration_time_unit='DAY')";
str = str+" PARTITION BY RANGE (ts) EVERY (60, DAY) SUBPARTITION BY HASH (ts) SUBPARTITIONS 64;";

Statement stmt = con.createStatement();
stmt.executeUpdate("DROP TABLE IF EXISTS device");
stmt.executeUpdate(str);
System.out.println("Successfully created device");

PreparedStatement pstmt = con.prepareStatement("INSERT into device14 (ts,co,humidity,light,lpg,motion,smoke,temp) VALUES (?,?,?,?,?,?,?,?) ");

pstmt.setTimestamp(1, new Timestamp(System.currentTimeMillis()));
pstmt.setDouble(2,0.002978);
pstmt.setDouble(3,52.2);
pstmt.setBoolean(4,false);
pstmt.setDouble(5,0.007938);
pstmt.setBoolean(6,true);
pstmt.setDouble(7,0.0368453);
pstmt.setDouble(8,23.9);
pstmt.execute();


					PreparedStatement pstmt = con.prepareStatement("SELECT temp from device WHERE temp > ?");
pstmt.setDouble(1, 23.0);
ResultSet rs = pstmt.executeQuery();
while( rs.next() ){
    double temp = rs.getDouble(1);
    System.out.println("SQL Row temp: " + temp);
}

con.close();


					# for more information, please visit the docs
# https://docs.griddb.net/gettingstarted/python.html

import griddb_python as griddb

factory = griddb.StoreFactory.get_instance()
DB_HOST = "127.0.0.1:10001"
DB_CLUSTER = "myCluster"
DB_USER = "admin"
DB_PASS = "admin"

try:
    # Fixed list method
    gridstore = factory.get_store(
        notification_member=DB_HOST,
		cluster_name=DB_CLUSTER,
		username=DB_USER,
		password=DB_PASS)
	print("Succesfully connected to GridDB!")
except griddb.GSException as e:
    for i in range(e.get_error_stack_size()):
        print("[", i, "]")
        print(e.get_error_code(i))
        print(e.get_location(i))
        print(e.get_message(i))


					# Create the container
conInfo = griddb.ContainerInfo(name="device",
column_info_list=[["ts", griddb.Type.TIMESTAMP],
					["co", griddb.Type.DOUBLE],
					["humidity", griddb.Type.DOUBLE],
					["light", griddb.Type.BOOL],
					["lpg", griddb.Type.DOUBLE],
					["motion", griddb.Type.BOOL],
					["smoke", griddb.Type.DOUBLE],
					["temperature", griddb.Type.DOUBLE]],
type=griddb.ContainerType.TIME_SERIES)
ts = gridstore.put_container(conInfo)
print(conInfo.name, "container succesfully created")

# (2) Insert Data
device = gridstore.get_container("device")
if device == None:
    print("ERROR Container not found.")
device.put(["2022-09-21T12:00:01.234Z", 0.003551, 50.0,
            False, 0.00754352, False, 0.0232432, 21.6])
print("Single row successfully inserted!")


					query = device.query("SELECT *")
rs = query.fetch()

# Get results
while rs.has_next():
    row = rs.next()
    print("ts=", row[0], ", co=", row[1], ", humidity=", row[2], ",light=",row[3], ",lpg=", row[4], ",motion=", row[5], ",smoke=", row[6])

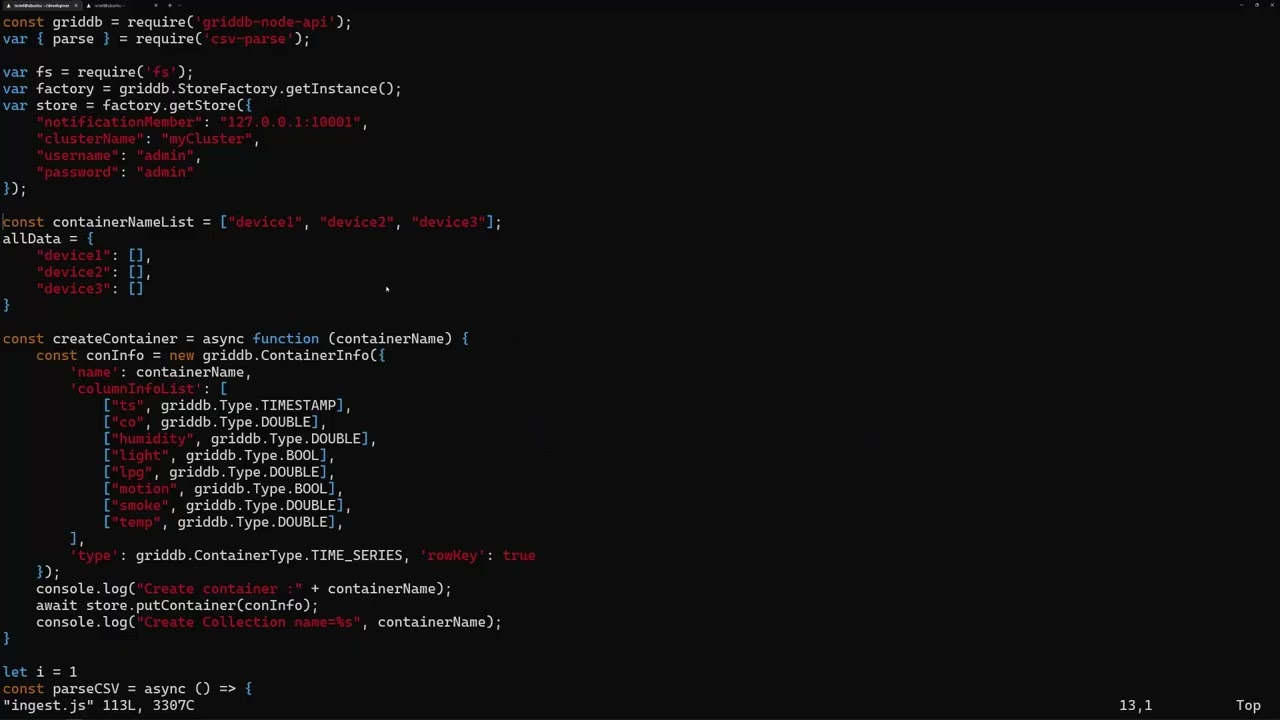

					// for more information, please visit the docs
// https://docs.griddb.net/gettingstarted/nodejs.html

const griddb = require('griddb-node-api');
const factory = griddb.StoreFactory.getInstance();
const store = factory.getStore({
    "notificationMember": "127.0.0.1:10001",
    "clusterName": "myCluster",
    "username": "admin",
    "password": "admin"
});


					const containerName = "device";
const conInfo = new griddb.ContainerInfo({
    'name': containerName,
    'columnInfoList': [
            ["ts", griddb.Type.TIMESTAMP],
            ["co", griddb.Type.DOUBLE],
            ["humidity", griddb.Type.DOUBLE],
            ["light", griddb.Type.BOOL],
            ["lpg", griddb.Type.DOUBLE],
            ["motion", griddb.Type.BOOL],
            ["smoke", griddb.Type.DOUBLE],
            ["temp", griddb.Type.DOUBLE],
    ],
    'type': griddb.ContainerType.TIME_SERIES, 'rowKey': true
});

const getRandomFloat = (min, max) => Math.random() * (max - min) + min;

async function createContIngestData() {

    const row = [];
    row[0] = new Date();
    row[1] = parseFloat(getRandomFloat(1, 10).toFixed(2));
    row[2] = parseFloat(getRandomFloat(1, 10).toFixed(2));
    row[3] = true;
    row[4] = parseFloat(getRandomFloat(1, 10).toFixed(2));
    row[5] = false;
    row[6] = parseFloat(getRandomFloat(1, 10).toFixed(2));
    row[7] = parseFloat(getRandomFloat(1, 10).toFixed(2));

    try {
        await store.dropContainer(containerName);
        const cont = await store.putContainer(conInfo)
        await cont.put(row);
    } catch (error) {
        console.log("error: ", error)
    }
}


					const queryStr = "SELECT *";

const queryCont = async (queryStr) => {
     const data = []
     try {
         const ts = await store.getContainer(containerName);
         const query = await ts.query(queryStr);
         const rs = await query.fetch(query);
         while(rs.hasNext()) {
             data.push(rs.next())
         }
         console.log("Rows: ", data);
         return data
     } catch (error) {
         console.log("Query Error: ", error)
     }
}


					// for more information, please visit the docs
// https://docs.griddb.net/gettingstarted/go.html

import griddb "github.com/griddb/go_client"
factory := griddb.StoreFactoryGetInstance()

// Get GridStore object
gridstore, err := factory.GetStore(map[string]interface{}{
	"notification_member": "127.0.0.1:10001",
	"cluster_name":        "myCluster",
	"username":            "admin",
	"password":            "admin"})
if err != nil {
	fmt.Println(err)
	panic("err get store")
}
defer griddb_go.DeleteStore(gridstore)


					conInfo, err := griddb_go.CreateContainerInfo(map[string]interface{} {
    "name": "col01",
    "column_info_list":[][]interface{}{
        {"name", griddb_go.TYPE_STRING},
        {"status", griddb_go.TYPE_BOOL},
        {"count", griddb_go.TYPE_LONG},
        {"lob", griddb_go.TYPE_BLOB}},
    "type": griddb_go.CONTAINER_COLLECTION,
    "row_key": true})
if (err != nil) {
    fmt.Println("Create containerInfo failed, err:", err)
    panic("err CreateContainerInfo")
}
defer griddb_go.DeleteContainerInfo(conInfo)

col, err := gridstore.PutContainer(conInfo)
if (err != nil) {
    fmt.Println("put container failed, err:", err)
    panic("err PutContainer")
}
defer griddb_go.DeleteContainer(col)

col.SetAutoCommit(false)
blob := []byte{65, 66, 67, 68, 69, 70, 71, 72, 73, 74}
err = col.Put([]interface{}{"name01", false, 1, blob})
if (err != nil) {
    fmt.Println("put row name01 fail, err:", err)
}
col.Commit()


					query, err := col.Query("select *")
if (err != nil) {
    fmt.Println("create query failed, err:", err)
    panic("err create query")
}
defer griddb_go.DeleteQuery(query)

// Execute query
rs, err := query.Fetch(update)
if (err != nil) {
    fmt.Println("fetch failed, err:", err)
    panic("err create rowset")
}
defer griddb_go.DeleteRowSet(rs)

for rs.HasNext() {
    rrow, err := rs.NextRow()
    if (err != nil) {
        fmt.Println("NextRow from rs failed, err:", err)
        panic("err NextRow from rowset")
    }

    rrow[2] = rrow[2].(int) + 1
    fmt.Println("Person: name=", rrow[0]," status=", rrow[1]," count=", rrow[2]," lob=", rrow[3])
}


					# For more information, please read the docs
# https://github.com/griddb/webapi/blob/master/GridDB_Web_API_Reference.md
# https://docs.griddb.net/gettingstarted/webapi.html

#Connecting to GridDB
#Make an HTTP Request to the specified port (default: 8080)

#/:cluster/dbs/:database/checkConnection

$ curl -X GET --basic -u admin:admin http://127.0.0.1:8080/griddb/v2/myCluster/dbs/public/checkConnection


					# http://[host]:[port]/griddb/v2/[clusterName]/dbs/public/containers

$ curl -X POST --basic -u admin:admin -H "Content-type:application/json" http://127.0.0.1:8080/griddb/v2/myCluster/dbs/public/containers -d
'{
"container_name": "test",
"container_type": "COLLECTION",
"rowkey": true,
"columns": [
	{
		"name": "col1",
		"type": "STRING",
		"index": [
			"TREE"
		]
	},
	{
		"name": "col2",
		"type": "INTEGER"
	},
	{
		"name": "col3",
		"type": "BOOL"
	}
]
}'


					# Append a Row of Data
# http://[host]:[port]/griddb/v2/[clusterName]/dbs/public/containers/[containerName]/rows

$ curl -X PUT --basic -u admin:admin -H "Content-type:application/json" http://127.0.0.1:8080/griddb/v2/myCluster/dbs/public/containers -d
'[["value", 1, true]]'

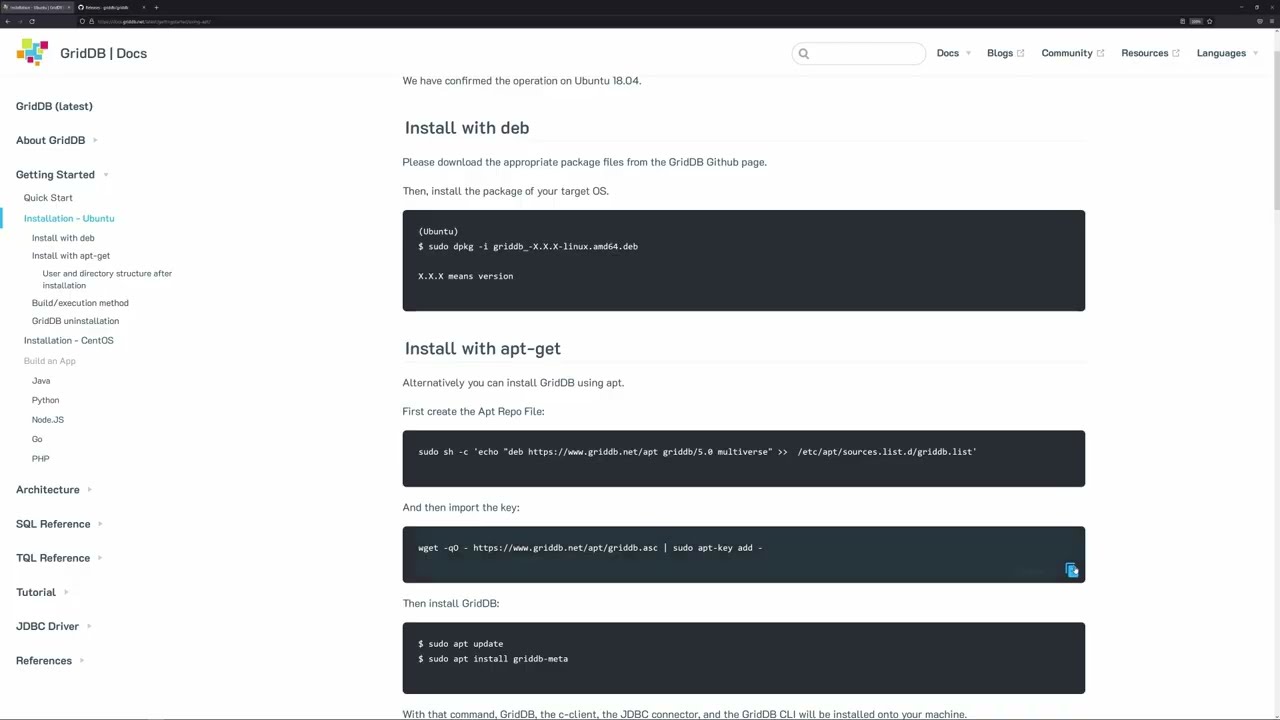

Get Started with GridDB

Install using apt repository

sudo sh -c 'echo "deb https://www.griddb.net/apt griddb/5.5 multiverse" >> /etc/apt/sources.list.d/griddb.list'
wget -qO - https://www.griddb.net/apt/griddb.asc | sudo apt-key add -
sudo apt update
sudo apt install griddb-meta
sudo systemctl start gridstore

Ubuntu Documentation →

First install WSL to your Windows Machine

Open up a raised (admin privileges) Windows powershell or command prompt
Enter `wsl --install`
Detailed instructions for WSL found: here

And then normal Ubuntu instructions

sudo sh -c 'echo "deb https://www.griddb.net/apt griddb/5.5 multiverse" >> /etc/apt/sources.list.d/griddb.list'
wget -qO - https://www.griddb.net/apt/griddb.asc | sudo apt-key add -
sudo apt update
sudo apt install griddb-meta
sudo systemctl start gridstore

WSL Documentation →

After installing Docker:

docker network create griddb-net
docker pull griddb/griddb
docker run --network griddb-net --name griddb-server -d -t griddt/griddb

Dockerhub Link →

First enable Linux

Head to your chromebook's settings, find the advanced section, and then developers.
You will see a setting title "Linux development environment" and select "turn on".
You will then be greeted with some simple on-screen instructions.

And then normal Ubuntu instructions

sudo sh -c 'echo "deb https://www.griddb.net/apt griddb/5.5 multiverse" >> /etc/apt/sources.list.d/griddb.list'
wget -qO - https://www.griddb.net/apt/griddb.asc | sudo apt-key add -
sudo apt update
sudo apt install griddb-meta
sudo systemctl start gridstore

ChromeOS Docs →
